Each MailChannels Email API service has a page in the WHMCS client area under Services > My Services. Customers use it to monitor usage, retrieve credentials, rotate them, and check a sending domain. No credentials are ever sent by email.

​
Status and usage

The top of the page shows two cards:
  • Emails sent this period. Messages sent against the plan limit, with a progress bar, the percentage used, and the number remaining. The bar turns amber at 80% of the limit and red at 100%. The card also shows the billing period dates, when MailChannels reports them, and when usage was last updated.
  • Status and Sub-account. The service state, and the sub-account handle. SMTP customers use the handle as their username.

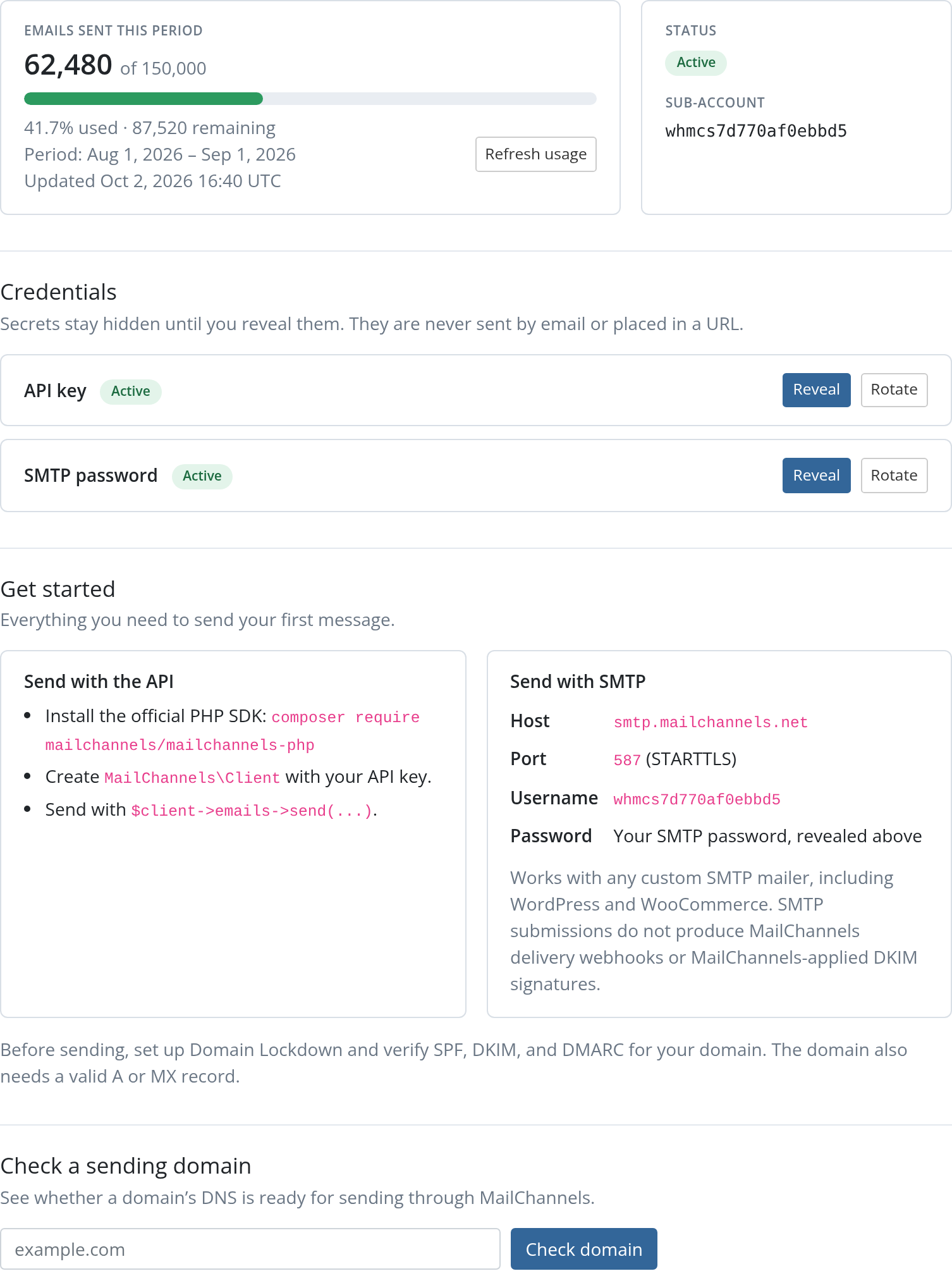

Client area management panel showing usage, status, credentials, getting started guidance, and the domain check form
Usage is cached for 15 minutes. The page refreshes it automatically when the cache is stale. Customers can click Refresh usage to bypass the cache at any time. If the service has not been provisioned yet, the page shows a notice instead of the cards. WHMCS shows this panel only while the service is active. When a service is suspended, the customer sees the standard WHMCS suspended notice instead.

​
Credentials

The Credentials section lists each module-managed credential with its type (API key or SMTP password) and status. Secrets are hidden until the customer asks for them.

​
Reveal a credential

Clicking Reveal decrypts the secret and shows it in a read-only field under the credential, with a Copy button and a reminder to store it safely. For SMTP credentials, the username is shown the same way. It is the sub-account handle. The secret is hidden again when the customer leaves the page.

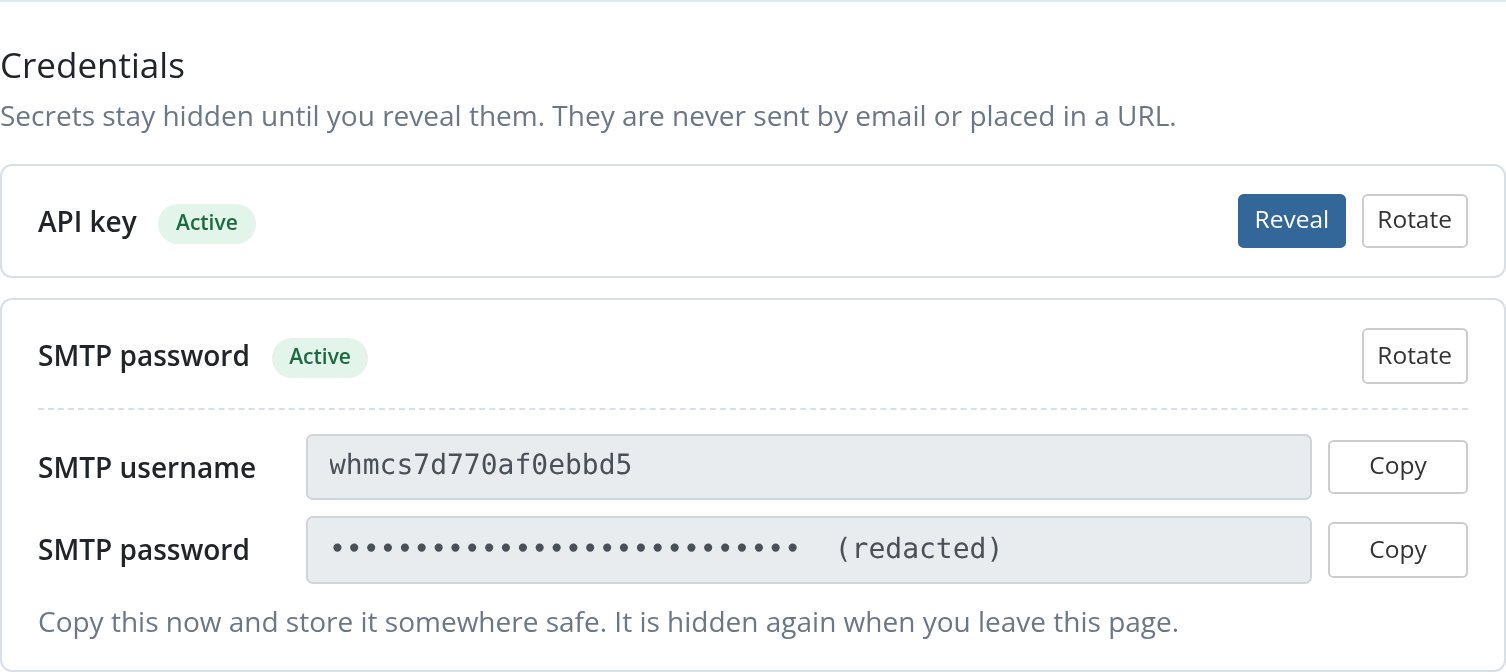

Credentials section with an SMTP password revealed, showing the SMTP username and a redacted password, each with a Copy button
Reveals are ownership-checked and CSRF-protected POST requests. The response is sent with Cache-Control: no-store so browsers and proxies do not keep a copy. The plugin records the time of the reveal but never the secret itself. Customers can reveal the same credential again later. Because the secret is stored encrypted in WHMCS, there is no need to rotate just to see it again.

​
Rotate a credential

Rotation is two-phase so a customer never loses the ability to send:
1

Create the replacement

The customer clicks Rotate next to the credential. The plugin creates a new credential at MailChannels, stores it encrypted, and reveals it immediately. The replacement is listed under the original with the status Replacement, not yet confirmed. The old credential keeps working.
2

Test the replacement

The customer updates their application or SMTP settings with the new secret and confirms mail is sending.
3

Confirm the rotation

The customer clicks Confirm replacement works next to the pending credential and accepts the confirmation prompt. The plugin revokes the old credential at MailChannels, erases its stored secret, and marks the replacement Active.
Credentials section during rotation, with the original API key still active and a highlighted replacement awaiting confirmation
Until the customer confirms, both credentials remain valid. A pending replacement can be revealed again from the credential list. Only one replacement per credential type can be pending at a time, so Rotate is hidden until the customer confirms.
Rotation is available only for credential types the plan includes. A customer on an API only plan has no SMTP password to rotate.

​
Getting started guidance

The page includes setup instructions that depend on the plan’s credential mode.

​
API plans

API plans show a Send with the API card. The customer installs the official SDK with composer require mailchannels/mailchannels-php, creates MailChannels\Client with the revealed API key, and sends through $client->emails->send(...). Point customers to the PHP quickstart and SDK examples for complete code. API plans also include a Check a sending domain form. The customer enters a domain and clicks Check domain. The plugin calls the MailChannels check-domain endpoint using the customer’s own active API key. The result is a table with one row per check: SPF, each DKIM entry, Domain Lockdown, the sender domain, and its A and MX records. Each row shows Passed or Failed and the explanation MailChannels returned. Show full response expands the complete JSON result.

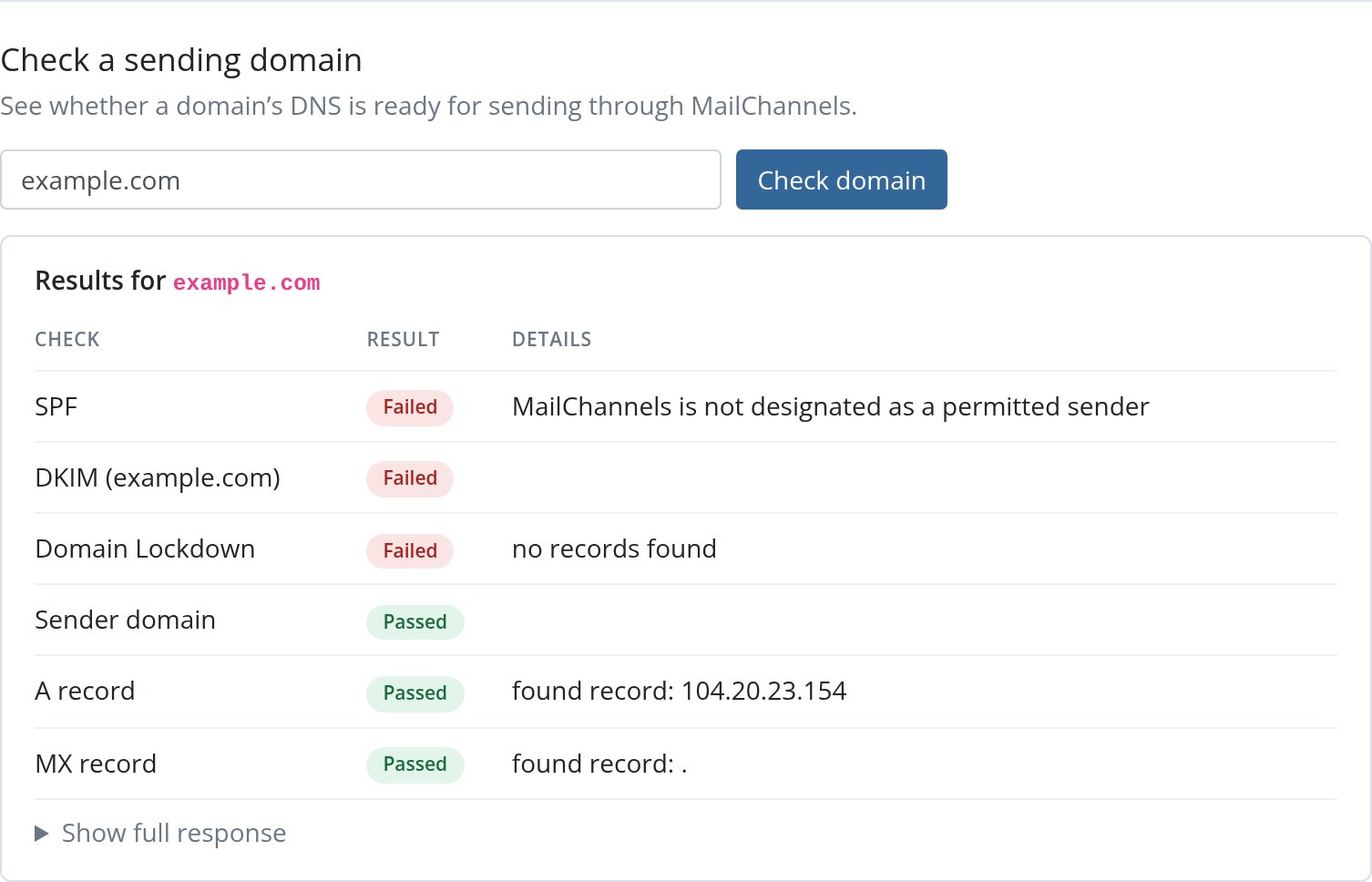

Domain check results table for example.com with failed SPF, DKIM, and Domain Lockdown checks and passed sender domain, A record, and MX record checks

​
SMTP plans

SMTP plans show a Send with SMTP card with settings for WordPress, WooCommerce, or any custom SMTP mailer:
Messages submitted over SMTP do not generate MailChannels delivery webhooks and are not DKIM-signed by MailChannels. Customers who need delivery events or hosted DKIM should use the API. See Email API vs SMTP.

​
DNS guidance

Every plan reminds the customer to configure Domain Lockdown and to verify SPF, DKIM, and DMARC before sending. The sending domain must also have a valid A or MX record, or MailChannels rejects mail from it. For Domain Lockdown, the customer authorizes your parent account ID or their sub-account in the _mailchannels TXT record on their domain. The domain check on API plans tells them whether the record is correct.

​
Access control

  • Only the WHMCS client that owns the service can open the page. Requests for other services fail with Access denied.
  • Every action is a POST protected by the WHMCS client-area CSRF token.
  • Credentials never appear in URLs, ordinary page HTML, or the WHMCS welcome email.
  • Errors are passed through the plugin’s redactor before display, so API keys or passwords cannot leak through exception text.
See Security and data flow for details.
