The addon page gives you a live view of how much capacity you have sold against your parent account, and a reconciliation job that checks every service against MailChannels.

​
Capacity dashboard

Three cards appear at the top of Addons > MailChannels Email API:
Addon status cards showing Parent connection, Active allocations of 310,000 sends, and Shared parent ceiling usage of 65,600 out of 2,000,000

​
Over-allocation

Sub-account limits do not reserve parent capacity. Your parent account’s limit is the hard ceiling for all sub-accounts combined. Once the parent limit is reached, MailChannels blocks sending from every sub-account until the next billing period. The Shared parent ceiling card turns into a warning when the sum of plan allocations exceeds your parent limit. This is not an error. It means that if every customer used their full allocation, your parent account would run out first. Decide how much to over-sell based on your customers’ actual usage, and watch the parent usage figure as the period progresses.
If parent usage approaches the limit, raise your MailChannels plan before customers are blocked. Blocked sends affect every customer at once, not just the heaviest ones.
For the full rules, see Sub-account sending limits.

​
Reconciliation

Reconciliation compares each active or suspended service in WHMCS with its sub-account at MailChannels and records any drift.

​
What is checked

For each service, the plugin:
  1. Confirms the sub-account still exists.
  2. Compares the sub-account’s enabled state with the WHMCS lifecycle state.
  3. Refreshes usage and compares the remote send limit with the plan limit.
  4. Confirms every active or pending module-managed credential still exists at MailChannels.

​
Drift codes

Drift is recorded in the operation history as a failed reconcile operation with error code remote_drift and the list of codes in its context. The service’s last error code is updated so you can find it later.

​
Automatic reconciliation

The addon registers a WHMCS AfterCronJob hook. Once every 24 hours, after the WHMCS daily cron finishes, the hook reconciles up to 50 services. It is rate-limited so it never runs more than once per day, and it never writes secret material to cron output.

​
Reconcile now

To run reconciliation on demand, click Reconcile now under Recovery and reconciliation. This bypasses the daily rate limit and checks up to 100 services. The addon reports how many were checked and how many have drift or an API failure. The card also shows when reconciliation last ran.

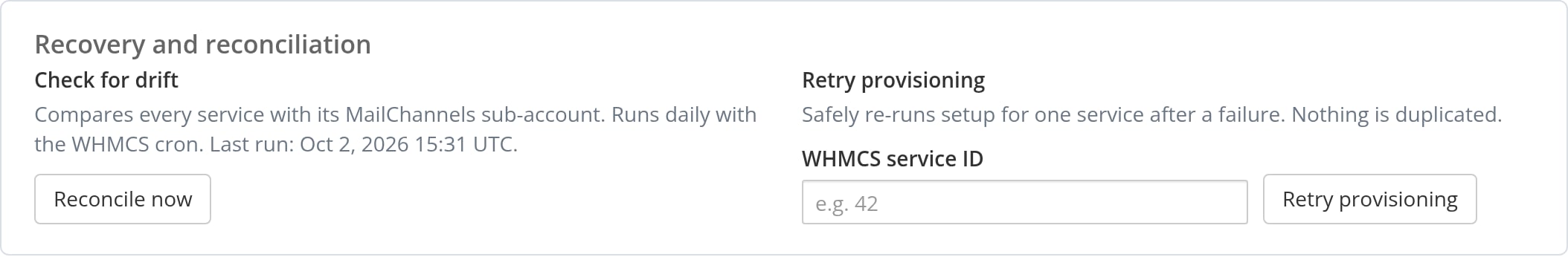

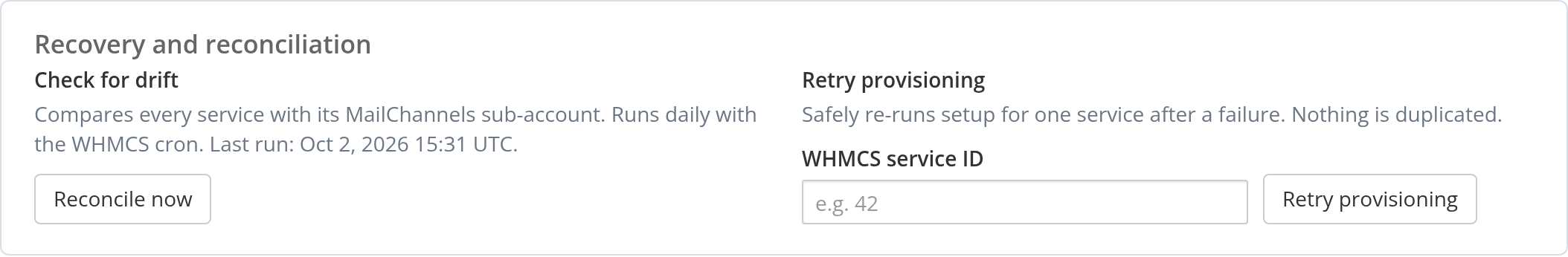

Recovery and reconciliation card with the Reconcile now button, the last run time, and the Retry provisioning form

​
Fix drift

Reconciliation detects drift but does not correct it automatically, because the right fix depends on why it happened.

​
Operation history

The Operation history table at the bottom of the addon page lists the 20 most recent operations across all services. Each row shows:
  • Time (UTC).
  • WHMCS service ID, linked to the service in the admin area.
  • Operation: Create, Suspend, Unsuspend, Change package, Terminate, Reconcile, Rotate create, or Rotate confirm.
  • Outcome: Success or Failed.
  • Error code, for failures.
  • MailChannels request ID, when the API returned one.

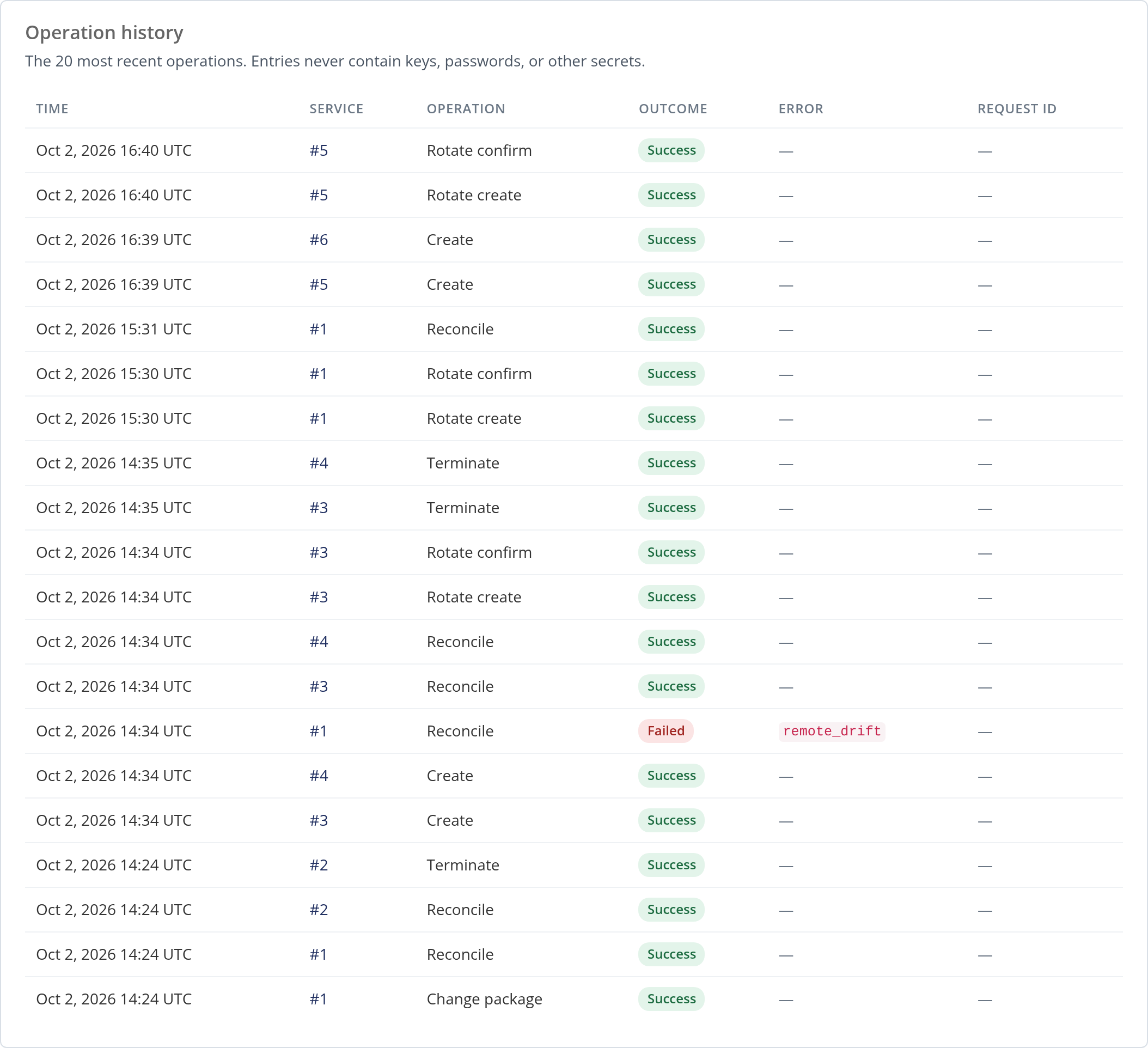

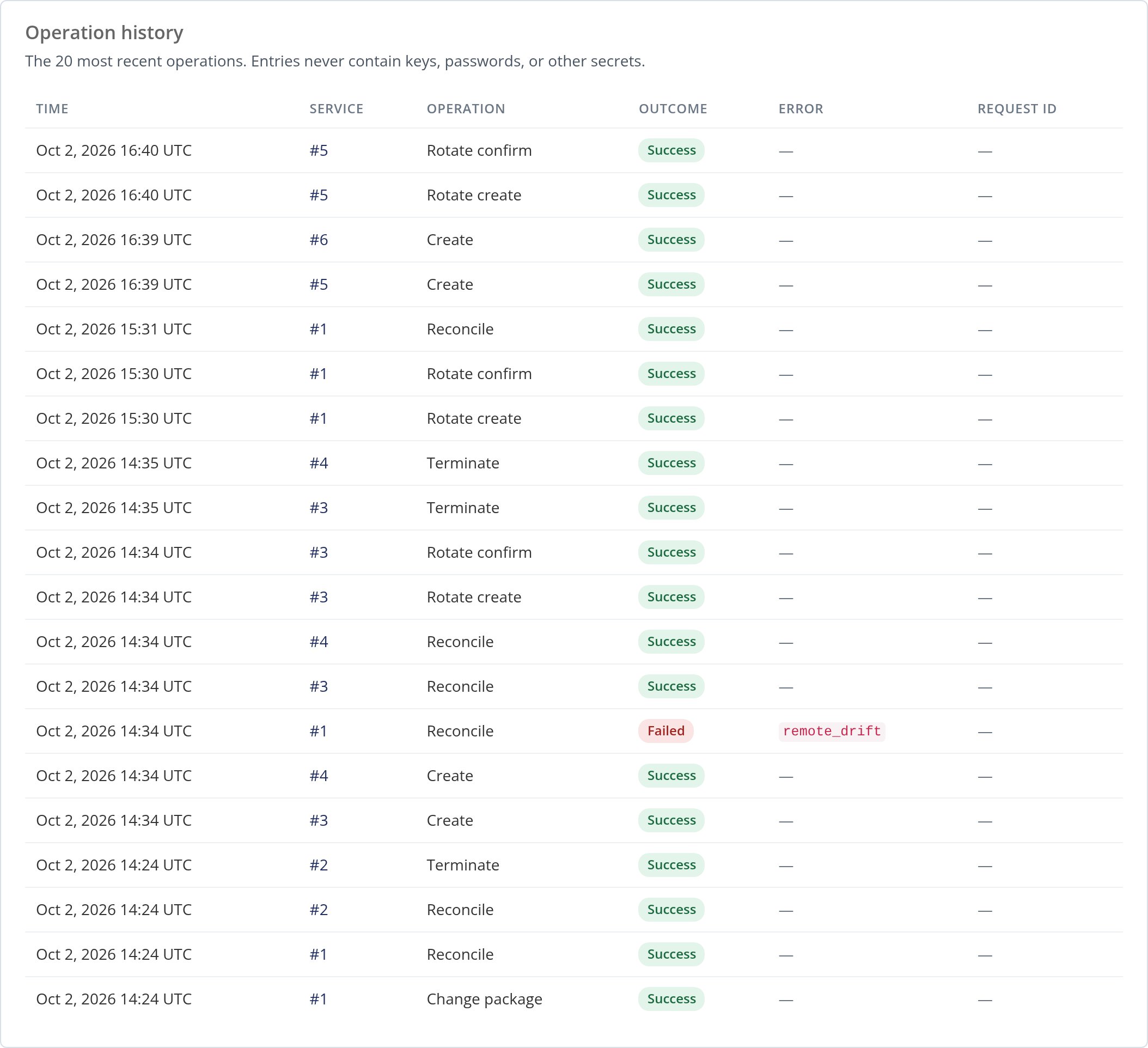

Operation history table listing recent operations, including a failed Reconcile row with the error code remote_drift
Every value passes through the plugin’s redactor before it is stored. Include the request ID when you contact MailChannels support about a failed operation. The table stores operations under their internal names, such as change_package and rotate_create. Use those names when you query the table directly. For older entries, query the mod_mailchannels_email_api_operations table directly.
